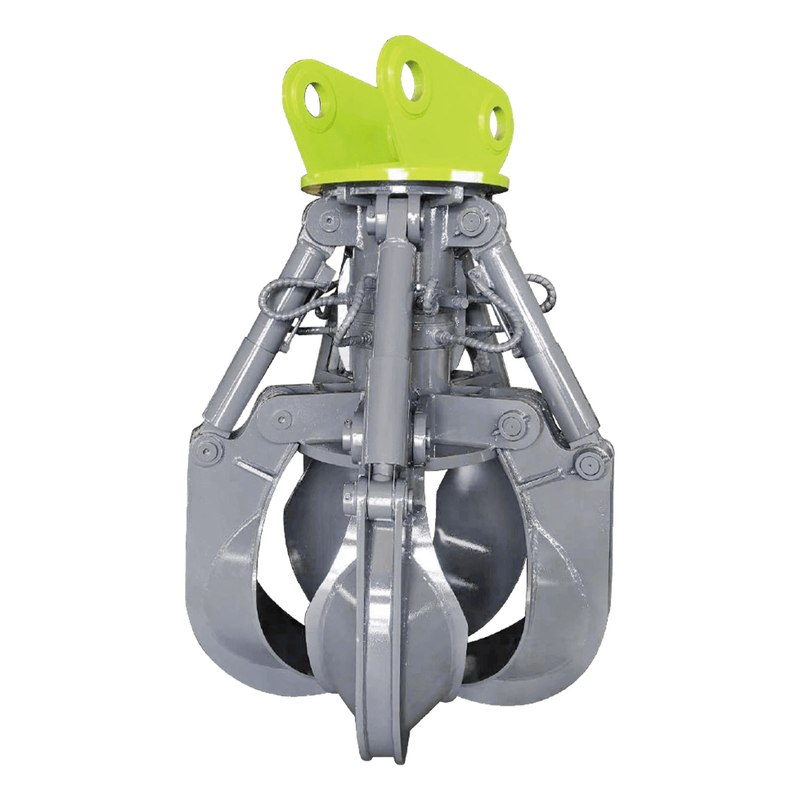

Product Name：Orange Peel Grapple
Product Details：
loading. unloading. and handling o buk stone. steel, Wood and othee materials.Main feabures: NlM500 shed, light weight and wearesistant;The pin is made of 42CrMo aloy steel. with bultHn ail passage.high strength and good Noughness.Rotary molor imported from Swizerland, venical cart motor rotation Bystem, 360"rotatin. cart brake function:The ail cvlinder atopts honing tube, imorted HALLiTE al seal, short working cydle and long lfe.
Specifications:
Item | LD04 | LD06 | LD08 | LD10 |
Suitable Excavator | 6-12 | 12-18 | 18-25 | 25-32 |
Weight | 470 | 1050 | 1370 | 1700 |
Operating Capacity | 0.60 | 0.60 | 0.80 | 1.00 |
A | 1730 | 2175 | 2700 | 3300 |
B | 960 | 1200 | 1500 | 1880 |
C | 595 | 745 | 935 | 1160 |
H | 1350 | 1700 | 2100 | 2650 |
H1 | 1570 | 1970 | 2400 | 3080 |
Driving Pressure | 300 | 300 | 300 | 300 |
Driving Flow | 180-230 | 180-230 | 200-250 | 250-300 |
Rotating Motor Set Up Pressure | 120 | 120 | 120 | 120 |
Rotating Motor Motor Flow | 30 | 30 | 30 | 30 |
Rotating Motor Frequency | 16-18 | 16-18 | 16-18 | 16-18 |

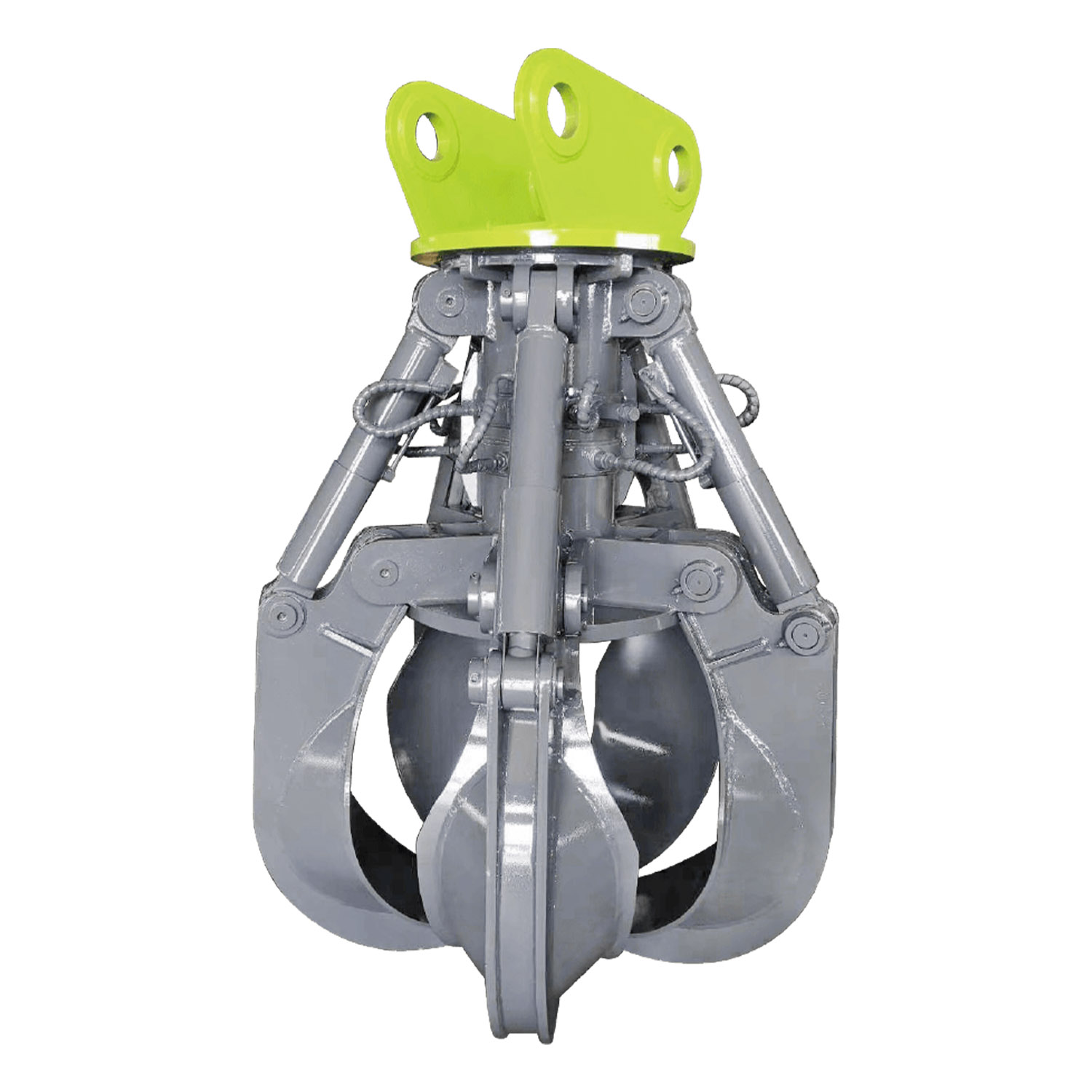

Product Name：Orange Peel Grapple
