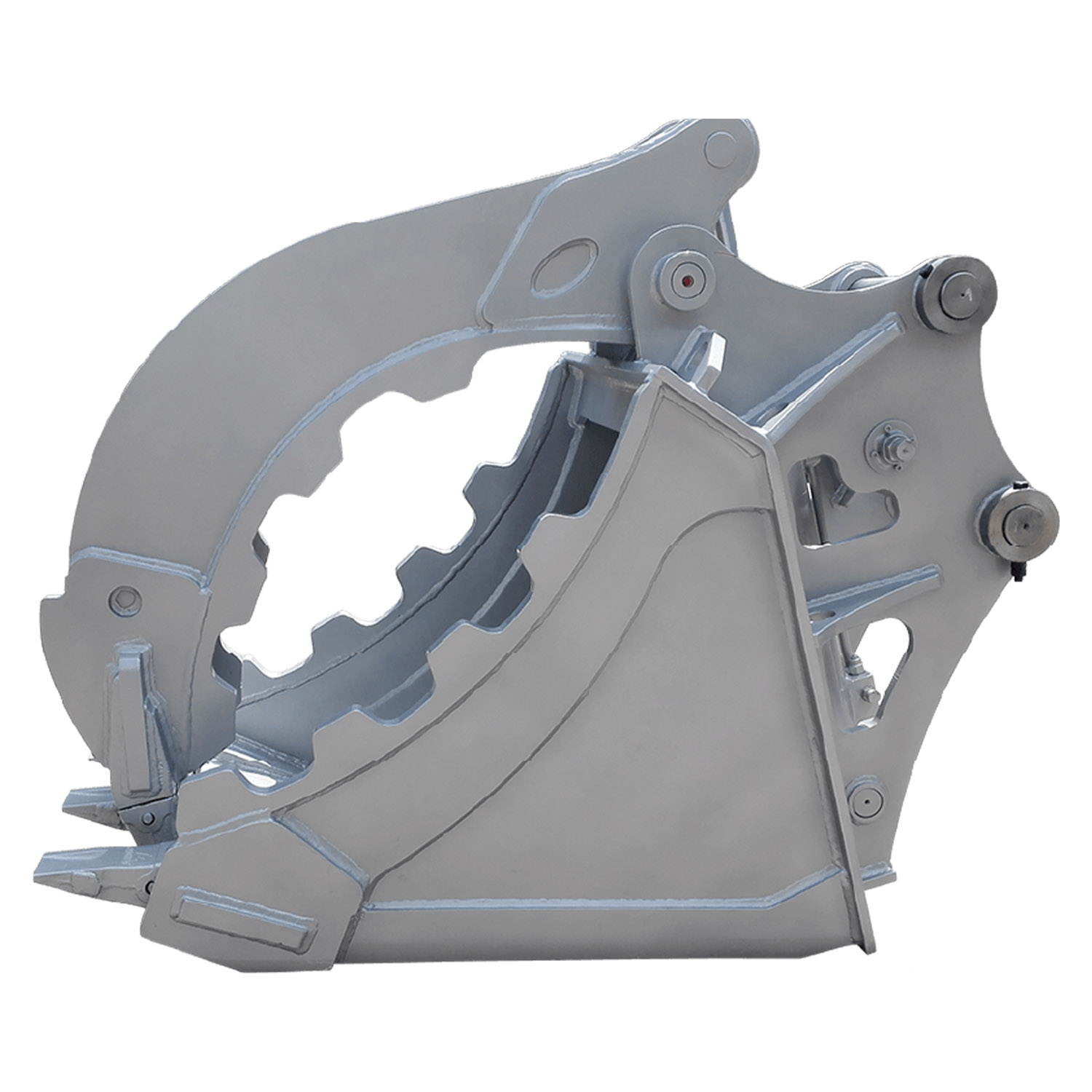

Product Name：Clamp Bucket
Product Details：
This product is mainly composed of a fixed body, a slidingbody and an extendable cylinder. The arm is made ofhigh-strength 700 material. Embedded hydraulic hoses caneffectively prevent damage caused by obstacles. lt also has :oad-extension function, which can work over some obsta-cles directly.Generally, it carries a bucket to complete deeppit excavation as well as be matched with a clamshell bucketto grab soil. sand, coal, etc.
Specifications：
Item | Unit | LD02 | LD03 | LD04 | LD06 |
Suitable Excavator | ton | 2-3 | 4-6 | 7-11 | 12-16 |
Weight | kg | 180 | 360 | 520 | 840 |
Max Jaw Opening | mm | 818 | 1150 | 1380 | 1550 |
Working Pressure | bar | 100-130 | 110-140 | 120-160 | 150-170 |
Set Up Pressure(bar) | bar | 150 | 170 | 180 | 190 |
Working Fiow(lpm) | bar | 25-40 | 30-55 | 50-100 | 90-100 |
Cyfinder Valure(Ton) | ton | 4.0 | 5.4 | 5.4 | 8.2 |
