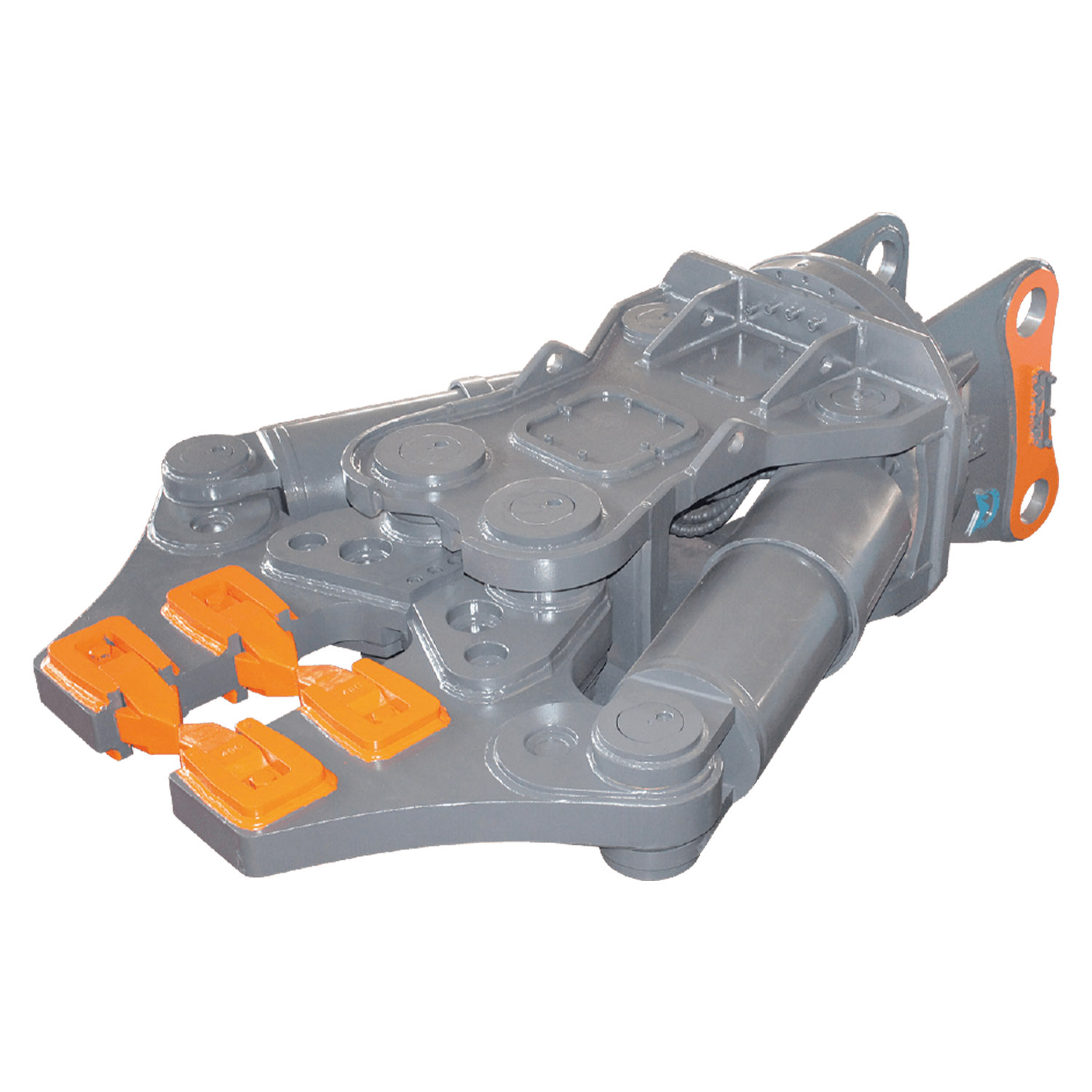

Product Name：Multi shear/Multi crusher
Product Details：
Applicable objects: crushing and shearing operations such as building demolition and steel shearing Main features: Made of Swedish Hardox 500 steel lightweight and wear-resistant;The pin is made of 42CrMo alloy steel, with built-in oil passage,high strength and good toughness Rotary motor adopts Swiss imported motor full-angle rotation;The oil cylinder adopts honing tube,imported HALLITE oil seal,short working cycle and long life;The knife block is made of wear-resistant alloy steel,which is resistant to high temperature and deformation
Specifications：
Item | Unit | LD8OV | LD180V | LD280V | LD380V |
Suitable Excavator | ton | 6-10 | 12-18 | 20-30 | 26-35 |
Weight | kg | 360 | 1280 | 1600 | 2000 |
0pening | mm | 390 | 650 | 730 | 810 |
Blade Length | mm | 100 | 150 | 180 | 180 |
Height | mm | 1280 | 1890 | 2010 | 2120 |
Width | mm | 850 | 1285 | 1350 | 1500 |
Crushing Force | ton | 20 | 80 | 100 | 120 |
Cutting Force | ton | 50 | 165 | 210 | 260 |
Driving Pressure | bar | 250 | 300 | 300 | 300 |
Driving Flow | lpm | 180 | 230 | 240 | 240 |
